Philmac Camlock

Wide range for reliable hose connections

Philmac offers a comprehensive range of pressure hose connections with their camlock range. Philmac’s range of camlock fittngs are available in aluminium, ny glass and polypropylene. Sized from ½” to 4”, they provide excellent chemical resistance and strength for most applications.

Send an Enquiry

Range Downloads Installation

Type

Elbow Female BSP Joiner Male BSP Reducing Spare Part Tee Valve End Cap Bush Barb Clamp Spray Dripper Stake Filter Coupling Socket Nipple Ball Valve Float Valve End Plug Float Nut Pod Kit Riser Adapter

Australian Made

Any Yes No

Warranty

Any None 20-year

Certification

Any WaterMark ASN 4020

Filter Clear

CAMLOCK ALUMINIUM ALLOY TYPE A



Product Number	Size
A50-AL	1/2”
A75-AL	3/4”
A100-AL	1”
A125-AL	1-1/4”
A150-AL	1-1/2”
A200-AL	2”
A250-AL	2-1/2”
A300-AL	3”
A400-AL	4”
A500-AL	5″
A600-AL	6″
A800-AL	8″

CAMLOCK ALUMINIUM ALLOY TYPE B



Product Number	Size
B50-AL	1/2”
B75-AL	3/4”
B100-AL	1”
B125-AL	1-1/4”
B150-AL	1-1/2”
B200-AL	2”
B250-AL	2-1/2”
B300-AL	3”
B400-AL	4”
B500-AL	5″
B600-AL	6″
B800-AL	8″

CAMLOCK ALUMINIUM ALLOY TYPE C



Product Number	Size
C50-AL	1/2”
C75-AL	3/4”
C100-AL	1”
C125-AL	1-1/4”
C150-AL	1-1/2”
C200-AL	2”
C250-AL	2-1/2”
C300-AL	3”
C400-AL	4”
C500-AL	5″
C600-AL	6″
C800-AL	8″

CAMLOCK ALUMINIUM ALLOY TYPE D



Product Number	Size
D50-AL	1/2”
D75-AL	3/4”
D100-AL	1”
D125-AL	1-1/4”
D150-AL	1-1/2”
D200-AL	2”
D250-AL	2-1/2”
D300-AL	3”
D400-AL	4”
D500-AL	5″
D600-AL	6″
D800-AL	8″

CAMLOCK ALUMINIUM ALLOY TYPE DC



Product Number	Size
DC50-AL	1/2”
DC75-AL	3/4”
DC100-AL	1”
DC125-AL	1-1/4”
DC150-AL	1-1/2”
DC200-AL	2”
DC250-AL	2-1/2”
DC300-AL	3”
DC400-AL	4”
DC500-AL	5″
DC600-AL	6″
DC800-AL	8″

CAMLOCK ALUMINIUM ALLOY TYPE DP



Product Number	Size
DP50-AL	1/2”
DP75-AL	3/4”
DP100-AL	1”
DP125-AL	1-1/4”
DP150-AL	1-1/2”
DP200-AL	2”
DP250-AL	2-1/2”
DP300-AL	3”
DP400-AL	4”
DP500-AL	5″
DP600-AL	6″
DP800-AL	8″

CAMLOCK ALUMINIUM ALLOY TYPE E



Product Number	Size
E50-AL	1/2”
E75-AL	3/4”
E100-AL	1”
E125-AL	1-1/4”
E150-AL	1-1/2”
E200-AL	2”
E250-AL	2-1/2”
E300-AL	3”
E400-AL	4”
E500-AL	5″
E600-AL	6″
E800-AL	8″

CAMLOCK ALUMINIUM ALLOY TYPE F



Product Number	Size
F50-AL	1/2”
F75-AL	3/4”
F100-AL	1”
F125-AL	1-1/4”
F150-AL	1-1/2”
F200-AL	2”
F250-AL	2-1/2”
F300-AL	3”
F400-AL	4”
F500-AL	5″
F600-AL	6″
F800-AL	8″

CAMLOCK POLYPROPYLENE TYPE A



Product Number	Size
A50-PP	1/2”
A75-PP	3/4”
A100-PP	1”
A125-PP	1-1/4”
A150-PP	1-1/2”
A200-PP	2”
A300-PP	3”
A400-PP	4”

CAMLOCK POLYPROPYLENE TYPE B



Product Number	Size
B50-PP	1/2”
B75-PP	3/4”
B100-PP	1”
B125-PP	1-1/4”
B150-PP	1-1/2”
B200-PP	2”
B300-PP	3”
B400-PP	4”

CAMLOCK POLYPROPYLENE TYPE C



Product Number	Size
C50-PP	1/2”
C75-PP	3/4”
C100-PP	1”
C125-PP	1-1/4”
C150-PP	1-1/2”
C200-PP	2”
C300-PP	3”
C400-PP	4”

CAMLOCK POLYPROPYLENE TYPE D



Product Number	Size
D50-PP	1/2”
D75-PP	3/4”
D100-PP	1”
D125-PP	1-1/4”
D150-PP	1-1/2”
D200-PP	2”
D300-PP	3”
D400-PP	4”

CAMLOCK POLYPROPYLENE TYPE DC



Product Number	Size
DC75-PP	3/4”
DC100-PP	1”
DC125-PP	1-1/4”
DC150-PP	1-1/2”
DC200-PP	2”
DC300-PP	3”
DC400-PP	4”

CAMLOCK POLYPROPYLENE TYPE DP



Product Number	Size
DP75-PP	3/4”
DP100-PP	1
DP125-PP	1-1/4”
DP150-PP	1-1/2”
DP200-PP	2”
DP300-PP	3”
DP400-PP	4”

CAMLOCK POLYPROPYLENE TYPE E

Product Number	Size
E50-PP	1/2”
E75-PP	3/4”
E100-PP	1”
E125-PP	1-1/4”
E150-PP	1-1/2”
E200-PP	2”
E300-PP	3”
E400-PP	4”

CAMLOCK POLYPROPYLENE TYPE F



Product Number	Size
F50-PP	1/2”
F75-PP	3/4”
F100-PP	1”
F125-PP	1-1/4”
F150-PP	1-1/2”
F200-PP	2”
F300-PP	3”
F400-PP	4”

CAMLOCK SEAL EPDM



Product Number	Size
CW75E	1/2″ & 3/4″
CW100E	1″
CW125E	1-1/4″
CW150E	1-1/2″
CW200E	2″
CW250E	2-1/2″
CW300E	3″
CW400E	4″
CW500E	5″
CW600E	6″
CW800E	8″

CAMLOCK SEAL FPM



Product Number	Size
CW75F	1/2″ & 3/4″
CW100F	1″
CW125F	1-1/4″
CW150F	1-1/2″
CW200F	2″
CW250F	2-1/2″
CW300F	3″
CW400F	4″
CW500F	5″
CW600F	6″
CW800F	8″

CAMLOCK SEAL NBR



Product Number	Size
CW75N	1/2″ & 3/4″
CW100N	1″
CW125N	1-1/4″
CW150N	1-1/2″
CW200N	2″
CW250N	2-1/2″
CW300N	3″
CW400N	4″
CW500N	5″
CW600N	6″
CW800N	8″

CAMLOCK ALUMINIUM ALLOY TYPE F



Product Number	Size
CA75B	1/2″ & 3/4″
CA100B	1″
CA250B	1-1/4″, 1-1/2″, 2″ & 2-1/2″
CA500B	3″, 4″ & 5″
CA800B	6″ & 8″

CAMLOCK NY GLASS TYPE A



Product Number	Size
A50-NY	1/2”
A75-NY	3/4”
A100-NY	1”
A125-NY	1-1/4”
A130-NY	1-1/2” X 1-1/4”
A150-NY	1-1/2”
A200-NY	2”
A300-NY	3”
A400-NY	4”

CAMLOCK NY GLASS TYPE B



Product Number	Size
B50-NY	1/2”
B75-NY	3/4”
B100-NY	1”
B125-NY	1-1/4”
B130-NY	1-1/2” X 1-1/4”
B150-NY	1-1/2”
B200-NY	2”
B300-NY	3”
B400-NY	4”

CAMLOCK NY GLASS TYPE C



Product Number	Size
C50-NY	1/2”
C75-NY	3/4”
C100-NY	1”
C125-NY	1-1/4”
C130-NY	1-1/2” X 1-1/4”
C150-NY	1-1/2”
C200-NY	2”
C300-NY	3”
C400-NY	4”

CAMLOCK NY GLASS TYPE D



Product Number	Size
D50-NY	1/2”
D75-NY	3/4”
D100-NY	1”
D125-NY	1-1/4”
D130-NY	1-1/2” X 1-1/4”
D150-NY	1-1/2”
D200-NY	2”
D300-NY	3”
D400-NY	4”

CAMLOCK NY GLASS TYPE DC



Product Number	Size
DC75-NY	3/4”
DC100-NY	1”
DC125-NY	1-1/4”
DC150-NY	1-1/2”
DC200-NY	2”
DC300-NY	3”
DC400-NY	4”

CAMLOCK NY GLASS TYPE DP



Product Number	Size
DP75-NY	3/4”
DP100-NY	1”
DP125-NY	1-1/4”
DP150-NY	1-1/2”
DP200-NY	2”
DP300-NY	3”
DP400-NY	4”

CAMLOCK NY GLASS TYPE E



Product Number	Size
E50-NY	1/2”
E75-NY	3/4”
E100-NY	1”
E125-NY	1-1/4”
E130-NY	1-1/2” X 1-1/4”
E150-NY	1-1/2”
E200-NY	2”
E300-NY	3”
E400-NY	4”

CAMLOCK NY GLASS TYPE F



Product Number	Size
F50-NY	1/2”
F75-NY	3/4”
F100-NY	1”
F125-NY	1-1/4”
F130-NY	1-1/2” X 1-1/4”
F150-NY	1-1/2”
F200-NY	2”
F300-NY	3”
F400-NY	4”

Technical | Philmac Camlock Range

Technical

Range | Philmac Camlock Range

Range

Overview / Why Choose This Product

Philmac Camlocks provide a quick, tool-free connection system for hoses and pipes, reducing downtime and improving efficiency. Available in aluminium, Ny-Glass, and polypropylene, these couplings offer excellent chemical resistance and strength for demanding environments. With a full range of configurations (Types A–F, DC, DP), Philmac Camlocks are engineered for reliability and ease of use in agricultural, industrial, and fluid transfer applications.

Key Features

Quick-connect design – tool-free assembly and disassembly

Durable construction – aluminium alloy, Ny-Glass, or polypropylene options

Corrosion and chemical resistance – ideal for harsh environments

Secure locking arms – stainless steel pins prevent accidental opening

Long spigot design – allows multiple pipe clips for better retention

Applications & Benefits

Applications

• Agricultural irrigation systems
• Industrial fluid transfer

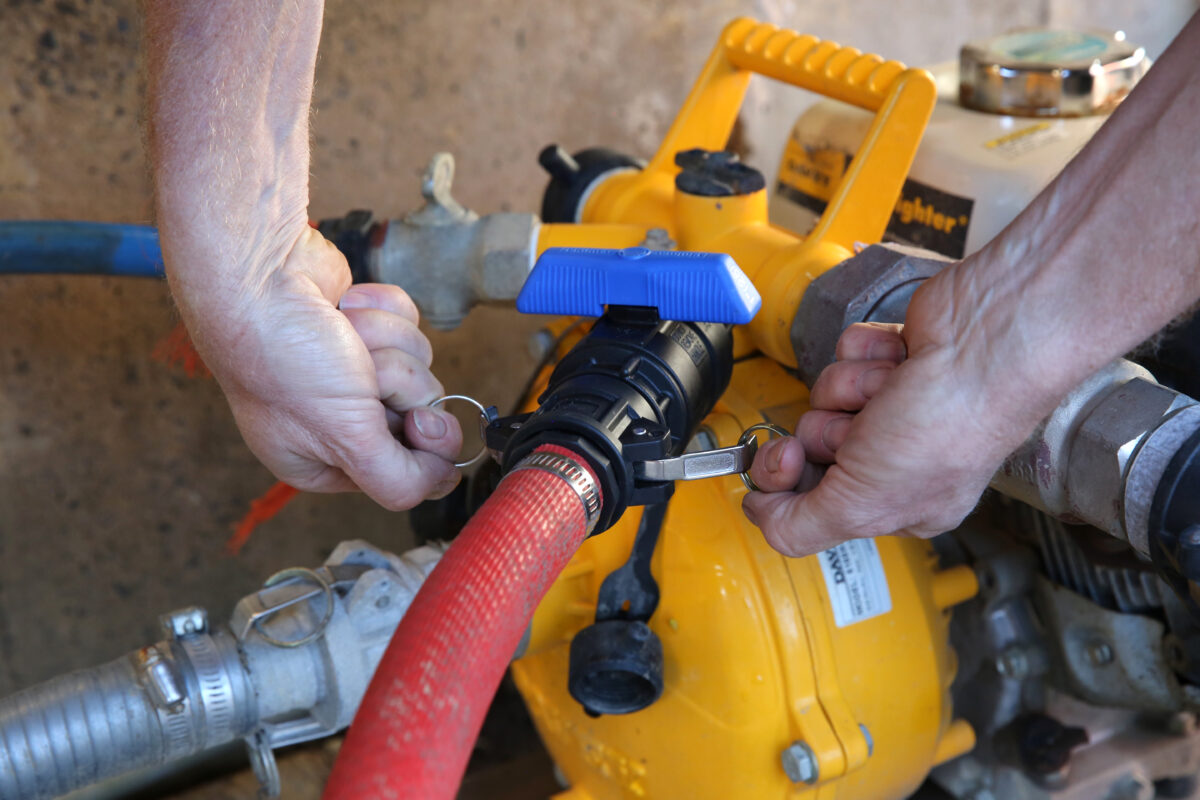

• Pump and hose connections
• Emergency water supply setups

Benefits

• Fast installation – reduces downtime
• Reliable sealing – gasket recess ensures watertight seal
• Versatile configurations – Types A–F, DC, DP for every connection need

Technical Specifications

• Size Range: ½” to 4″ (Aluminium up to 8″)
• Pressure Rating:
  • Aluminium Alloy: Up to 1200 kPa (½”–2″)
  • Ny-Glass: Up to 850 kPa (½”–1″)
  • Polypropylene: Up to 850 kPa (½”–1″)
• Material Options:
  • Aluminium Alloy body, NBR seals, SS304 arms
  • Ny-Glass body, EPDM seals, SS304 arms
  • Polypropylene body, EPDM seals, SS304 arms

Note: Camlocks are not designed for compressed air, gases, or steam. Do not disconnect under pressure or with liquid in the line.

Installation Guide

1. Slide the adaptor into the coupler until it bottoms out.
2. Press cam arms down by hand to lock the connection.
3. Insert locking pins to secure arms and prevent accidental opening.
4. For hose connections: Push hose over the fitting until it seats against the body; secure with one or two pipe clips.
5. For threaded connections: Apply PTFE tape to male threads before assembly.
6. To disconnect: Lift cam arms and remove the adaptor.

For detailed diagrams and adjustment tips, view the Philmac installation guide online.
