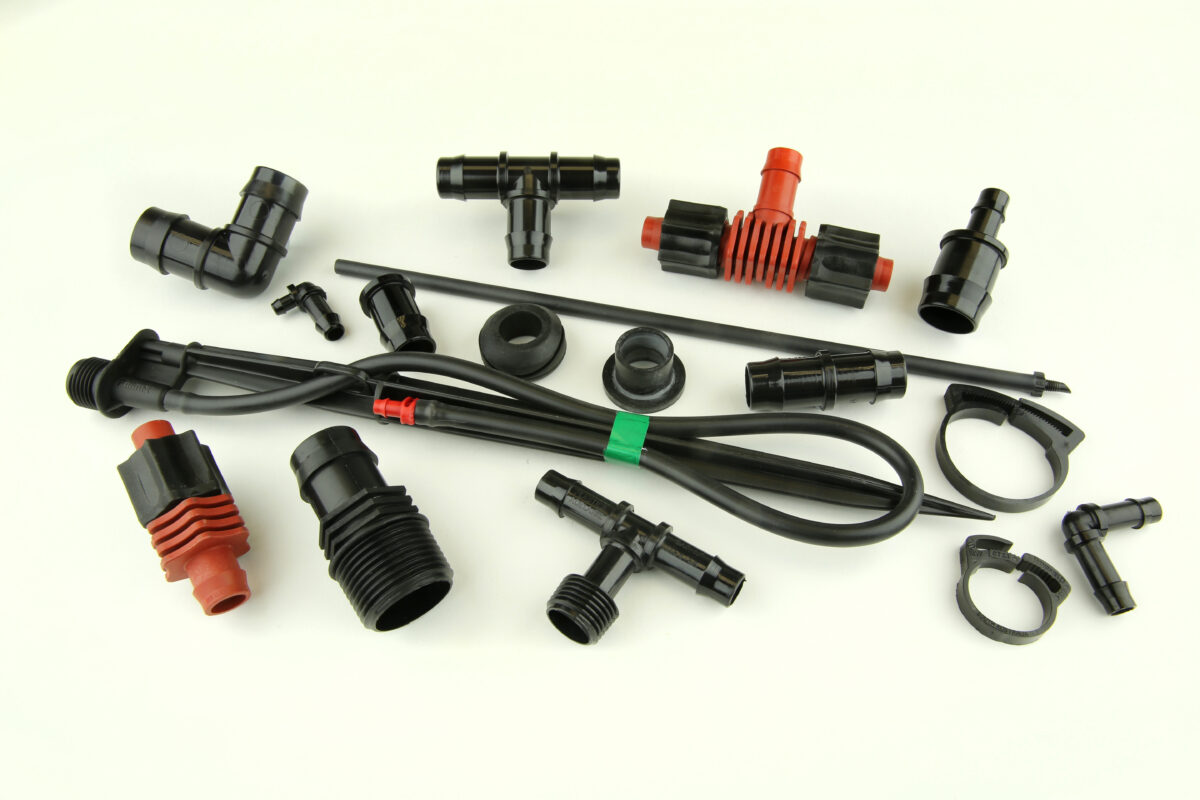

Philmac Micro Irrigation Fittings

Philmac’s micro irrigation fittings, stakes and tube are widely used in domestic gardens, commercial landscape and horticultural applications. They suit a range of LD pipe, flexible tube and drip tape.

Send an Enquiry

Range Downloads Installation

Type

Elbow Female BSP Joiner Male BSP Reducing Spare Part Tee Valve End Cap Bush Barb Clamp Spray Dripper Stake Filter Coupling Socket Nipple Ball Valve Float Valve End Plug Float Nut Pod Kit Riser Adapter

Australian Made

Any Yes No

Warranty

Any None 20-year

Certification

Any WaterMark ASN 4020

Filter Clear

BARB JOINERS BARB x BARB

Product Number	Size
14HJ	6 mm
38HJ	10 mm
12HJ	13 mm
58HJ	16 mm
34HJ	19 mm
10HJ	25 mm
L10HJ	25 mm Long
114HJ	32 mm

LDPE JOINERS



Product Number	Size
14HJ	6 mm
38HJ	10 mm
12HJ	13 mm
58HJ	16 mm
34HJ	19 mm
10HJ	25 mm
L10HJ	25 mm Long
114HJ	32 mm

LDPE REDUCING JOINERS



Product Number	Size
RJ5612	8 mm x 13 mm
RJ3814	10 mm x 6 mm
RJ1214	13 mm x 6 mm
RJ1238	13 mm x 10 mm
RJ5812	16 mm x 13 mm
RJ3412	19 mm x 13 mm
RJ3458	19 mm x 16 mm
RJ1012	25 mm x 13 mm
RJ1034	25 mm x 19 mm
RJ11410	32 mm x 25 mm

LDPE TEES

Product Number	Size
T14	6 mm
T38	10 mm
T12	13 mm
T58	16 mm
T34	19 mm
T10	25 mm
T114	32 mm

LDPE REDUCING TEES



Product Number	Size
1238RT	13 mm line x 10 mm branch
5812RT	16 mm line x 13 mm branch
3412RT	19 mm line x 13 mm branch
3458RT	19 mm line x 16 mm branch
1012RT	25 mm line x 13 mm branch
1058RT	25 mm line x 16 mm branch
1034RT	25 mm line x 19 mm branch
11434RT	32 mm line x 19 mm branch
11410RT	32 mm line x 25 mm branch

LDPE INCREASING TEES



Product Number	Size
IT1258	13 mm line x 16 mm branch
IT1234	13 mm line x 19 mm branch
IT5834	16 mm line x 19 mm branch
IT3410	19 mm line x 25 mm branch

LDPE THREADED TEES (Female)



Product Number	Size
T12G12F	13 mm line x 1/2” BSP branch
T34G12F	19 mm line x 1/2” BSP branch
T10G12F	25 mm line x 1/2” BSP branch

LDPE THREADED TEES (Male)



Product Number	Size
T12G12M	13 mm line x 1/2” BSP branch
T34G12M	19 mm line x 1/2” BSP branch
T3434M	19 mm line x 3/4” BSP branch
T10G12M	25 mm line x 1/2” BSP branch
T10G34M	25 mm line x 3/4” BSP branch
T114G12M	32 mm line x 1/2” BSP branch

LDPE ELBOWS 90°



Product Number	Size
E14	6 mm
E38	10 mm
E12	13 mm
E58	16 mm
E34	19 mm
E10	25 mm
E114	32 mm

LDPE THREADED ELBOWS 90° (Female)



Product Number	Size
E12G12F	13 mm x 1/2” BSP
E34G12F	19 mm x 1/2” BSP
E10G12F	25 mm x 1/2” BSP

LDPE THREADED ELBOWS 90° (Male)



Product Number	Size
E12G12M	13 mm x 1/2”
E34G12M	19 mm x 1/2”
E3434M	19 mm x 3/4”
E10G12M	25 mm x 1/2”
E10G34M	25 mm x 3/4”

LDPE CORNER ELBOW 90° (Male)



Product Number	Size
3CJ	19 mm x 1/2” BSP branch

LDPE DIRECTORS



Product Number	Size
D3812	10 mm x 1/2” BSP
D1214	13 mm x 1/4” BSP with washer
D1212	13 mm x 1/2” BSP
D1234	13 mm x 3/4” BSP
D1325	13 mm x 1” BSP
D5812	16 mm x 1/2” BSP
D3412	19 mm x 1/2” BSP
D3434	19 mm x 3/4” BSP
D1925	19 mm x 1” BSP
D1034	25 mm x 3/4” BSP
D1010	25 mm x 1” BSP
D11410	32 mm x 1” BSP

LDPE FOUR WAY CROSS



Product Number	Size
C12	13 mm

LDPE SNAP COUPLINGS



Product Number	Size
AS13	13 mm x 13 mm
AS1319	19 mm x 13 mm
Snap Coupler suits garden hose snap-on quick connectors

LDPE NUT AND TAIL WITH WASHER (Female)



Product Number	Size
N3412	3/4” BSP x 13 mm
N3458	3/4” BSP x 16 mm
N3434	3/4” BSP x 19 mm
N1012	1” BSP x 13 mm
N1058	1” BSP x 16 mm
N1034	1” BSP x 19 mm
N1010	1” BSP x 25 mm

LDPE NUT AND TAIL WITH WASHER (Female)(Male)



Product Number	Size
N1034M	1” BSP x 3/4″ BSP

LDPE BACK TO BACK NUTS



Product Number	Size
BBN3434	3/4” BSP x 3/4″ BSP
BBN1010	1” BSP x 1″ BSP

LDPE NUTS (WITH HOLE)



Product Number	Size
N34	3/4” BSP

LDPE BLANK NUT WITH WASHER



Product Number	Size
BN34	3/4” BSP
BN10	1” BSP

LDPE END PLUGS

Product Number	Size
EP38	10 mm
EP12	13 mm
EP58	16 mm
EP34	19 mm
EP10	25 mm
EP114	32 mm

LDPE RATCHET CLIPS



Product Number	Size
CT13	10 mm
CT15	13 mm
CT17	15mm
CT19	16 mm
CT23	19 mm
CT29	25 mm
CT32	29mm
CT37	32 mm

LDPE PIPE SADDLE CLAMPS



Product Number	Size
PC13	13 mm
PC34	19 mm
SR4	4mm Tube

LDPE QUICK ACTION VALVE (Barb)



Product Number	Size
VQA38	10 mm x 10 mm
VQA12	13 mm x 13 mm
VQA58	16 mm x 16 mm
VQA34	19 mm x 19 mm
VQA10	25 mm x 25 mm
Philmac recommend the use of Ratchet Clips with valves

LDPE QUICK ACTION VALVE (Barb)(Male)



Product Number	Size
VT1212	13mm barb x 1/2” BSP male
VT1234	13mm barb x 3/4” BSP male
Philmac recommend the use of Ratchet Clips with valves

GROMMETS – DOUBLE FLANGED RUBBER



Product Number	Size
GR56	8 mm ID to suit TO5612
GR34	19 mm ID to suit TO3458,
	TO3434, TO3410 & TO3114

GROMMETS TOP HAT



Product Number	Size
GR12TH	13 mm ID to suit
	TO1234 & TO1212
GR58TH	16 mm ID to suit
	TO5812 & TO5858
GR34TH	19 mm ID to suit TO3458,
	TO3434,TO3410 & TO5858

TAKE OFFS – TO SUIT 13MM ID GROMMET



Product Number	Size
TO1212	13 mm x 13mm
TO1234	13 mm x 19mm

TAKE OFFS – TO SUIT 16MM ID GROMMET



Product Number	Size
TO5812	16 mm x 13mm
TO5858	16 mm x 16mm

TAKE OFFS – TO SUIT 19MM ID GROMMET



Product Number	Size
TO3458	19 mm x 16mm
TO3434	19 mm x 19mm
TO3410	19 mm x 25mm
TO34114	19 mm x 32mm

TAKE OFFS – DIRECT INSERTION NO GROMMET

Product Number	Size
TO0610	6 mm insert x 10 mm tail
TOE0610	90° elbow –
	6 mm insert x 10 mm tail

Philmac Clip

Technical

Philmac Landscape Stake

Technical

Philmac Grommet

Technical

Philmac Tapelock

Technical

Philmac Micro Fittings

Range

How to install Philmac Stainless Steel Tube Clips

How to install Philmac Heavy Duty Hose Clamps

Overview / Why Choose This Product

Philmac Micro Irrigation Fittings are designed for low-flow systems where secure connections are essential. Built from UV-stabilised polypropylene, these fittings resist corrosion and withstand harsh outdoor conditions. With barbed and threaded options, they provide a simple, reliable solution for horticulture, landscaping, and garden irrigation.

Key Features

Leak-free connections – ideal for drip and micro-spray systems

UV-stabilised polypropylene – engineered for outdoor use

Wide range of configurations – elbows, tees, joiners, end plugs

Easy installation – barbed or threaded ends for quick fit

Applications & Benefits

Applications

• Drip irrigation lines
• Micro-spray systems
• Garden beds and pots
• Horticultural irrigation setups

Benefits

• Efficient water use – reduces waste and improves plant health
• Quick installation – saves time during setup
• Long service life – withstands UV exposure and corrosion

Technical Specifications

• Size Range: 4 mm, 6 mm, and 13 mm
• Connection Type: Barbed or threaded ends
• Material: UV-stabilised polypropylene

Note: Always confirm size and compatibility against the official datasheet and local standards.

Installation Guide

1. Select correct fitting type (elbow, tee, joiner, end plug) for your irrigation layout.
2. Cut tubing square and ensure ends are clean.
3. Insert barbed end fully into tubing for a secure fit.
4. For threaded connections: Apply PTFE tape and screw into fitting.
5. Pressurise and test the system for leaks and correct operation.

For detailed diagrams and adjustment tips, view the Philmac installation guide online.
