Philmac Pipe Risers

A range of Pipe Risers to suit every situation

Philmac offer an extensive range of male thread/female thread and male thread/male thread pipe risers that are manufactured from high performance, UV resistant material that prevents moisture absorption and ensures consistent dimensions over the products lifetime.

The range includes ½” to 2” sized pipe risers with M/M threads and ¾” and ½” and 1” and ¾” with M/F threads. M/F pipe risers are available up to 600mm long and M/M up to 1800mm long which means there is a pipe riser for most applications.

Send an Enquiry

Range Downloads Installation

Type

Elbow Female BSP Joiner Male BSP Reducing Spare Part Tee Valve End Cap Bush Barb Clamp Spray Dripper Stake Filter Coupling Socket Nipple Ball Valve Float Valve End Plug Float Nut Pod Kit Riser Adapter

Australian Made

Any Yes No

Warranty

Any None 20-year

Certification

Any WaterMark ASN 4020

Filter Clear

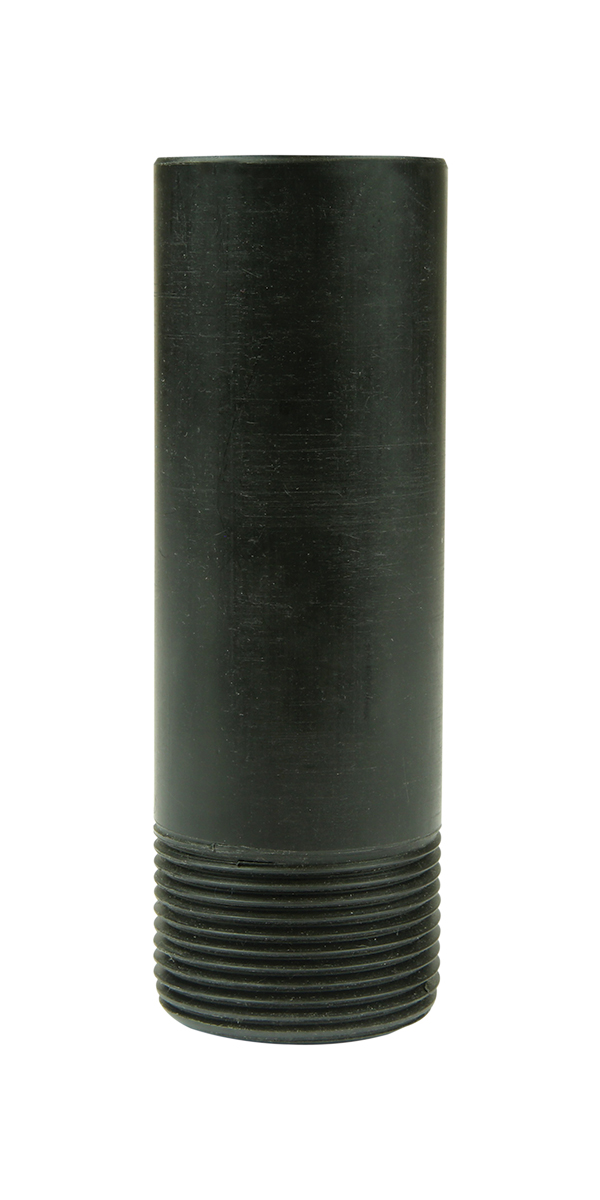

PIPE RISERS MI x FI (PP/PE)

Product Number	Size

90 4442 00	3/4” x 1/2”
90 4443 00	3/4” x 1/2”
90 4444 00	3/4” x 1/2”
90 4446 00	3/4” x 1/2”
90 4447 00	3/4” x 1/2”
90 4448 00	3/4” x 1/2”
90 4449 00	3/4” x 1/2”
90 4452 00	1” x 3/4”
90 4453 00	1” x 3/4”
90 4454 00	1” x 3/4”
90 4456 00	1” x 3/4”
90 4457 00	1” x 3/4”
90 4458 00	1” x 3/4”
90 4458 10	1” x 3/4”
90 4459 00	1” x 3/4”
90 4460 00	1” x 3/4”

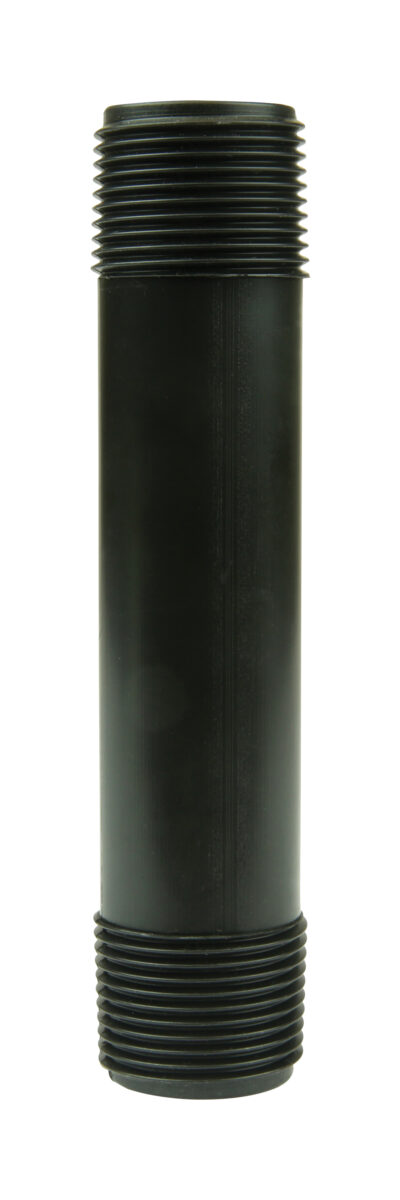

PIPE RISERS MI x MI (PP/PE)

Product Number	Size
90 4411 00	1/2”
90 4412 00	1/2”
90 4413 00	1/2”
90 4414 00	1/2”
90 4416 00	1/2”
90 4417 00	1/2”
90 4418 00	1/2”
90 4421 00	3/4”
90 4422 00	3/4”
90 4423 00	3/4”
90 4424 00	3/4”
90 4426 00	3/4”
90 4427 00	3/4”
90 4428 00	3/4”
90 4429 00	3/4”
90 4431 00	1”
90 4432 00	1”
90 4433 00	1”
90 4434 00	1”
90 4436 00	1”
90 4437 00	1”
90 4438 00	1”
90 4439 00	1”
90 4440 00	1”
90 4430 00	1″
90 4439 10	1″

Range | Philmac Pipe Raiser Range

Range

How to Install a Philmac Pipe Raisers

Overview / Why Choose This Product

Philmac Pipe Risers are designed to elevate sprinklers and irrigation outlets for optimal water distribution. Manufactured from UV-stabilised polypropylene, these risers resist corrosion and withstand harsh outdoor conditions. With BSP threaded ends for easy connection, they deliver a simple, reliable solution for agricultural, turf, and garden irrigation systems.

Key Features

Strong, stable design – supports sprinklers and outlets securely

UV-stabilised polypropylene – ideal for outdoor use

Corrosion-resistant – long service life in harsh conditions

Easy installation – BSP threaded ends for quick connection

Applications & Benefits

Applications

• Agricultural irrigation systems
• Turf and landscape watering
• Garden sprinkler setups
• Manifold assemblies

Benefits

• Improved water coverage – elevates sprinklers for better distribution
• Quick installation – reduces setup time
• Long service life – withstands UV exposure and corrosion

Technical Specifications

• Size Range: ½”, ¾”, and 1″ BSP
• Connection Type: BSP threaded ends
• Material: UV-stabilised polypropylene

Note: Always confirm size, pressure class, and compliance requirements against the official datasheet and local standards.

Installation Guide

1. Select correct riser size for sprinkler or outlet connection.
2. Apply PTFE tape to male BSP threads for a watertight seal.
3. Screw riser into base fitting (e.g., tee or elbow) until firm.
4. Attach sprinkler or outlet to the top of the riser and tighten securely.
5. Pressurise and test the system for leaks and correct operation.

For detailed diagrams and adjustment tips, view the Philmac installation guide online.
