Philmac UltraPHIL
Premium, dependable brass float valve, suited to a wide range of plumbing, agricultural, and industrial applications in tanks and troughs up to 1,500 litres. Watermark and ASNZ 4020 approved for use with potable water.
UltraPHIL is made with quality DZR brass which is resistant to the loss of zinc which causes leakage.
The valves have been designed for easy disassembly by simply removing the pivot pin, and body cap (where fitted) to allow access to all parts. In the brass and stainless steel body versions a stainless steel seat is used. Resists corrosion ensuring a positive shut-off.

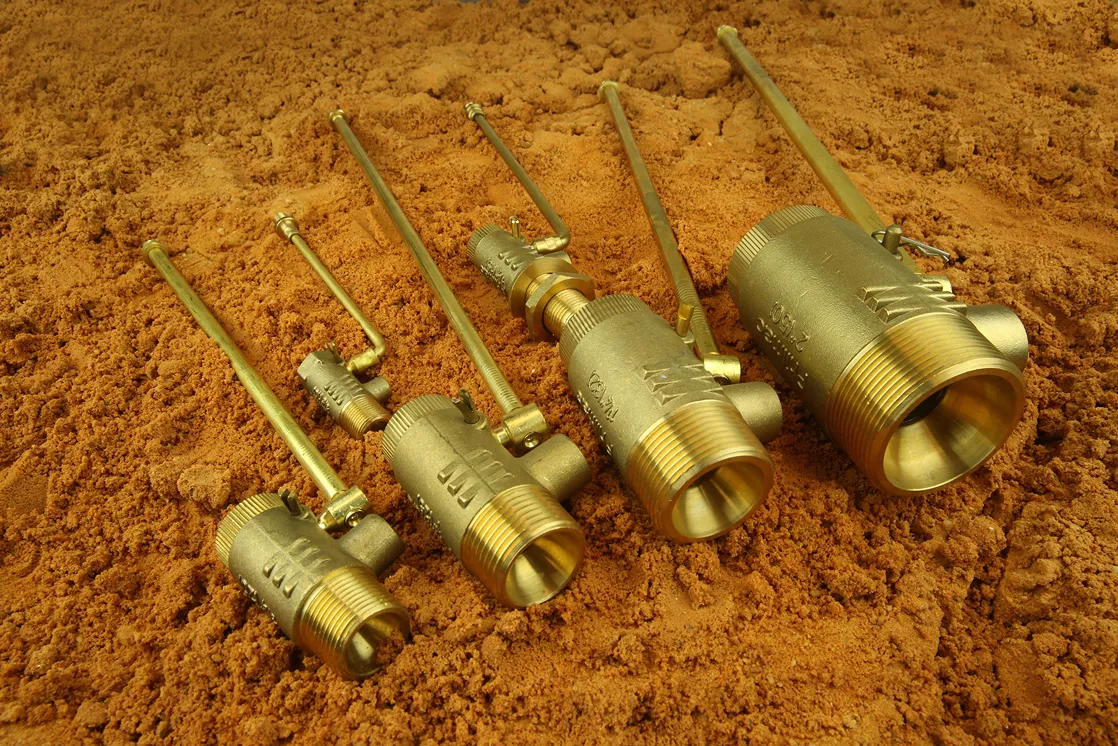

The UltraPHIL range includes parallel (fastening) threads or tapered (sealing) threads which makes them suited to a variety of installations. Plus, a comprehensive range of sizes are available, from ⅜” to 2” (DN10 to DN50).
The watermark approved valves are rated to a pressure of 200 psi (1400 kPa) (static shutoff). This is based on using the standard lever arm and recommended float (ball) size.
UltraPHIL BRASS FLOAT VALVE (Stainless Steel Seat) Tapered Thread
| Product Number | BSP Size |
|---|---|
| 90 3007 00 | 1/2” |
| 90 3044 00 | 3/4” |
| 90 3046 00 | 1” |
| 90 3048 00 | 11/4” |
| 90 3049 00 | 11/2” |
| 90 3050 00 | 2” |
UltraPHIL BRASS FLOAT VALVE (Stainless Steel Seat) Parallel Thread
| Product Number | BSP Size |
|---|---|
| 90 3005 00 | 3/8” |
| 90 3013 00 | 1/2” |
| 90 3015 00 | 1/2” |
| 90 3023 00 | 1/2” |
| 90 3031 00 | 1/2” |
UltraPHIL BRASS FLOAT VALVE (Stainless Steel Seat) Short Parallel Thread
| Product Number | Size |
|---|
| 40 3104 01 | S/P Lever Assy 125mm suits VersaPhil 3/8″ |
| 40 3104 01 | S/P Lever Assy 200mm suits VersaPhil 1/2″ |
UltraPHIL Premium Brass Float Valve Adaptor Spare Part
| Product Number | Size |
|---|---|
| 40 3131 04 | 1/2″ |
UltraPHIL Premium Brass Float Valve Back Nut Brass Spare Part
| Product Number | Size |
|---|---|
| 40 3102 09 | 1/2″ Valve |
UltraPHIL Premium Brass Float Valve Body Cap Brass Spare Part
| Product Number | Size |
|---|---|
| 40 3704 05 | 1/2″ |
| 40 3171 05 | 3/4″ |
| 40 3181 05 | 1″ |
| 40 3244 05 | 1-1/4″ |
| 40 3111 14 | 2″ |
UltraPHIL Premium Brass Float Valve Brass Washer Spare Part
| Product Number | Size |
|---|---|
| 40 3102 09 | 1/2″ Valve |
UltraPHIL Premium Brass Float Valve Lever Assembly Spare Part
| Product Number | Size |
|---|---|
| 40 3104 01 | 3/8″ (130mm lever) |
| 40 3006 01 | 1/2″ (125mm lever) |
| 40 3001 01 | 1/2″ (200mm lever) |
| 40 3002 01 | 1/2″ (250mm lever) |
| 40 3052 11 | 3/4″ (250mm lever) |
| 40 3053 11 | 1″ (355mm lever) |
| 40 3254 11 | 1-1/4″ (405mm lever) |
| 40 3255 11 | 1-1/2″ (405mm lever) |
| 40 3256 11 | 2″ (455mm lever) |
UltraPHIL Premium Brass Float Valve Pivot Pin Spare Part
| Product Number | Size |
|---|---|
| 40 3104 09 | 3/8″ |
| 40 3110 86 | 1/2″ |
| 40 3173 02 | 3/4″ |
| 40 3181 10 | 1″ |
| 40 3161 12 | 1-1/4″ |
| 40 3161 12 | 1-1/2″ |
| 40 3111 10 | 2″ |
UltraPHIL Premium Brass Float Valve Plunger Assembly Brass Spare Part
| Product Number | Size |
|---|---|
| 40 1000 03 | 3/8″ |
| 40 3031 12 | 1/2″ |
| 40 3042 13 | 3/4″ |
| 40 3053 13 | 1″ |
| 40 1000 82 | 1-1/4″ |
| 40 1001 02 | 1-1/2″ |
| 40 1001 22 | 2″ |
UltraPHIL Premium Brass Float Valve Seat Seal Spare Part
| Product Number | Size |
|---|---|
| 40 3104 04 | 3/8″ |
| 40 3101 07 | 1/2″ |
| 40 3172 03 | 3/4″ |
| 40 3182 03 | 1″ |
| 40 3191 07 | 1-1/4″ |
| 40 3110 07 | 1-1/2″ |
| 40 3111 07 | 2″ |
Overview / Why Choose This Product
Philmac UltraPHIL® is engineered for reliable isolation and control in demanding water transfer applications. From large irrigation networks to pumping and civil infrastructure, UltraPHIL® combines strong shut‑off performance with a durable, corrosion‑resistant build to deliver long service life in harsh Australian conditions. Provides confidence for installers, councils, and asset owners.
Key Features
High‑performance isolation – dependable shut‑off for network integrity
Built for harsh environments – corrosion‑resistant materials and protective coatings
Smooth operation – engineered internals for consistent performance
Infrastructure‑ready – available in common network sizes and connection patterns
Applications & Benefits
Applications
- Pump stations and water transfer manifolds
Benefits
- Operational reliability – secure isolation reduces unplanned downtime
- Lifecycle value – durable construction helps lower maintenance costs
- Installation flexibility – sizes and connections to suit common network standards
Technical Specifications
- Size Range:
- Connection Type: Typically flanged ends to AS/NZS patterns (confirm per model)
- Pressure Rating: PN16; operating limits vary by size/SKU
- Materials: Corrosion‑resistant body with protective coating; engineered internals for reliable shut‑off
Note: Specifications vary by SKU. Always confirm the exact size, connection standard, pressure class, and compliance against the official datasheet and local standards.
Installation Guide
- Inspect valve, faces, and hardware prior to install.
- Align to pipeline flanges with correct gaskets; avoid pipe strain/misalignment.
- Tighten bolts in a star pattern to recommended torque values.
- Pressurise and test per commissioning procedures before service.
For detailed orientation diagrams, torque tables, and maintenance intervals, view the Philmac installation guide online.
FAQs
What is UltraPHIL® used for?
UltraPHIL® is a high‑performance isolation valve for water transfer and distribution networks in irrigation, pumping, municipal, and industrial applications.
What connection types are offered?
Models commonly use flanged ends to AS/NZS patterns. Confirm the required standard and drilling for your project.
