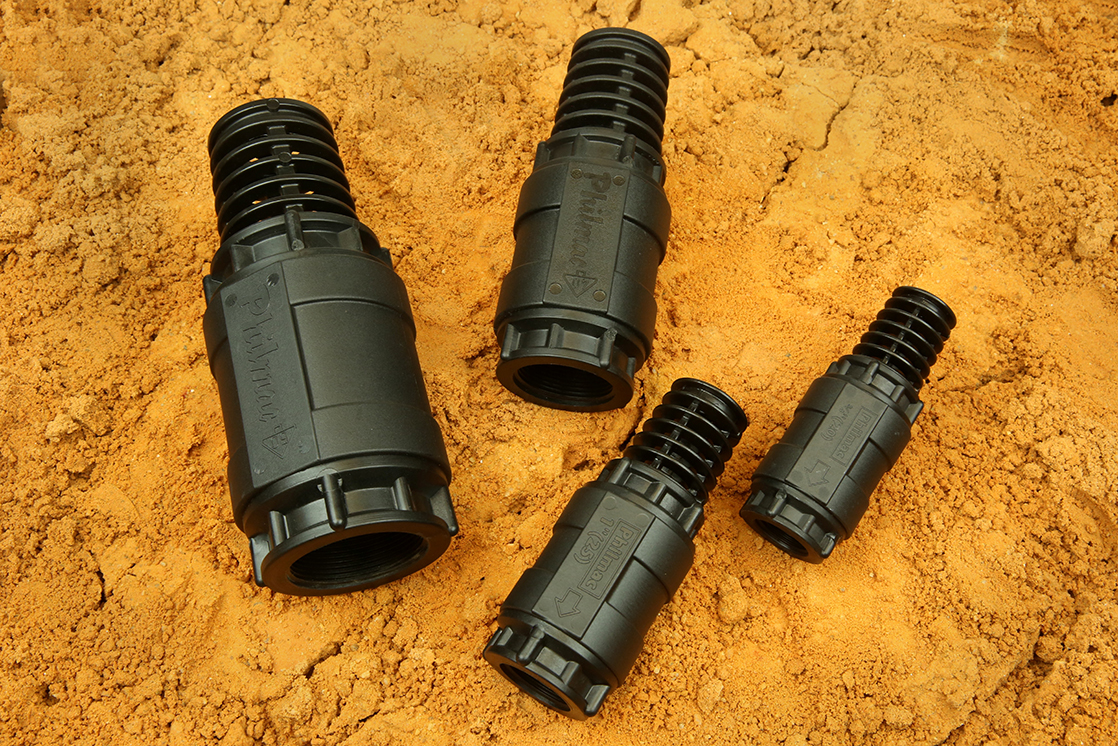

Philmac Foot Valves
Philmac foot valves have been successfully servicing the Australian market for more than 20 years with a reputation for quality and reliability. Designed to allow water to flow in only one direction to avoid loss of water, prevent backflow and ensure pipelines do not drain. The foot valve is also designed to prevent debris getting into the pipeline.
FOOT VALVES FI BSP
| Product Number | Size |
|---|---|
| 95 8012 00 | 3/4” |
| 95 8013 00 | 1” |
| 95 8014 00 | 11/4” |
| 95 8015 00 | 11/2” |
| 95 8016 00 | 2” |

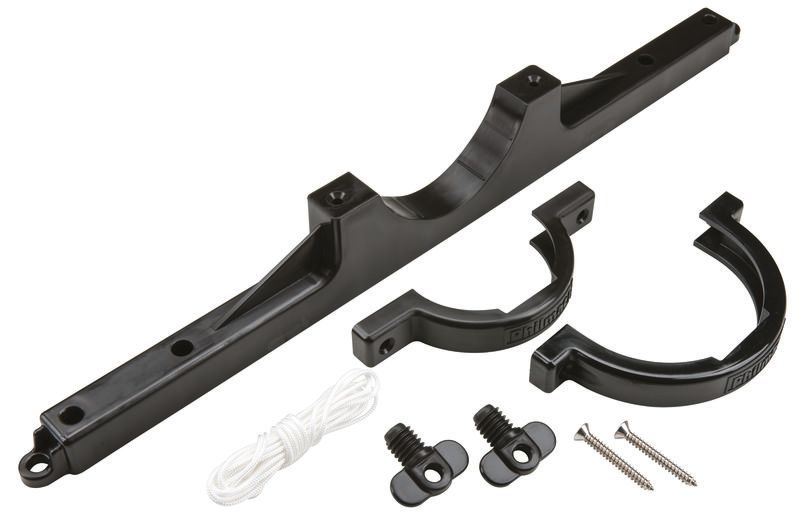

FOOT VALVE FLOAT RIG KIT
| Product Number | Size |
|---|---|
| 95 5010 00 | For 1 1/2” and 2” foot valves |
FOOT VALVE FILTERS
| Product Number | Size |
|---|---|
| 40 5012 07 | 3/4″ (20mm) |
| 40 5013 07 | 1″ (25mm) |
| 40 5014 07 | 1-1/4″ (32mm) |
| 40 5015 07 | 1-1/2″ (40mm) |
| 40 5016 07 | 2″ (50mm) |
FOOT & NON-RETURN VALVES SPARES-3/4″ to 1-1/2″
| Product Number | Size |
|---|---|
| 90 5972 10 | 3/4″ (20mm) |
| 90 5974 10 | 1-1/4″ (32mm) |
| 90 5975 10 | 1-1/2″ (40mm) |
FOOT & NON-RETURN VALVES SPARES-2″
| Product Number | Size |
|---|---|
| 90 5976 10 | 2″ (50mm) |
RODNEY INDUSTRIES FOOT VALVES GALVANISED FLANGE
| Product Number | Size |
|---|---|
| 6515 | 3″ |
| 6525 | 4″ |
| 6535 | 5″ |
| 6545 | 6″ |
| 6565 | 8″ |
RODNEY INDUSTRIES FOOT VALVES POLY COMPOSITE FLANGE
| Product Number | Size |
|---|---|
| FVPS100 | 4″ |
| FVPS125 | 5″ |
| FVPS150 | 6″ |
| FVPS200 | 8″ |
| FVPS250 | 10″ |
| FVPS300 | 12″ |
RODNEY INDUSTRIES FOOT VALVES STAINLESS STEEL SS316 FLANGE
| Product Number | Size |
|---|
| 6525SS316 | 4″ |
| 6535SS316 | 5″ |
| 6545SS316 | 6″ |
| 6565SS316 | 8″ |
RODNEY INDUSTRIES BORE CAPS – GALVANISED
| Product Number | Size |
|---|---|
| 4200 | 1 1/4″ |
| 4201 | 1 1/2″ |
| 4202 | 2″ |
| 4203 | 2 1/2″ |
| 4204 | 3″ |
| 4206 | 4″ |
Overview / Why Choose This Product
Philmac Foot Valves are designed to protect pumps and maintain prime in water transfer systems. Installed at the end of suction lines, these valves prevent backflow and debris entry, ensuring efficient pump operation and reducing downtime. Built tough for Australian conditions, they resist UV and corrosion for long-term reliability. Australian Made quality guarantees confidence in every installation.
Key Features
Non-return design – prevents backflow and maintains pump prime
Integrated strainer – protects against debris entry
Durable construction – UV-stabilised polypropylene body
Corrosion-resistant components – stainless steel spring and screen
Applications & Benefits
Applications
- Irrigation pump suction lines
- Stock watering systems
- Water transfer networks
- Domestic and rural pumping setups
Benefits
- Pump protection – reduces wear and downtime
- Reliable performance – maintains prime for efficient operation
- Built tough – withstands harsh conditions and UV exposure
Technical Specifications
- Size Range: ½” – 4″ BSP
- Connection Type: BSP threaded ends
- Pressure Rating: Up to PN16
- Material: UV-stabilised polypropylene body, stainless steel spring and screen
Note: Always confirm size, pressure class, and compliance requirements against the official datasheet and local standards.
Installation Guide
- Install at the end of the suction line in the water source.
- Ensure the valve is fully submerged and positioned vertically.
- Apply thread sealant or tape as per best practice.
- Pressurise and test the system before commissioning.
For detailed diagrams and torque guidance, view the Philmac installation guide online.
FAQs
What does a foot valve do?
A foot valve prevents backflow and maintains pump prime, ensuring efficient operation.
Does it include a strainer?
Yes. Philmac Foot Valves feature an integrated strainer to protect against debris.
What sizes are available?
Common sizes include ½”, ¾”, 1″, 1½”, 2″, and up to 4″ BSP.
Is it suitable for potable water?
Yes, where compliant. Always confirm local regulations and product datasheet.
