Philmac Gas Compression

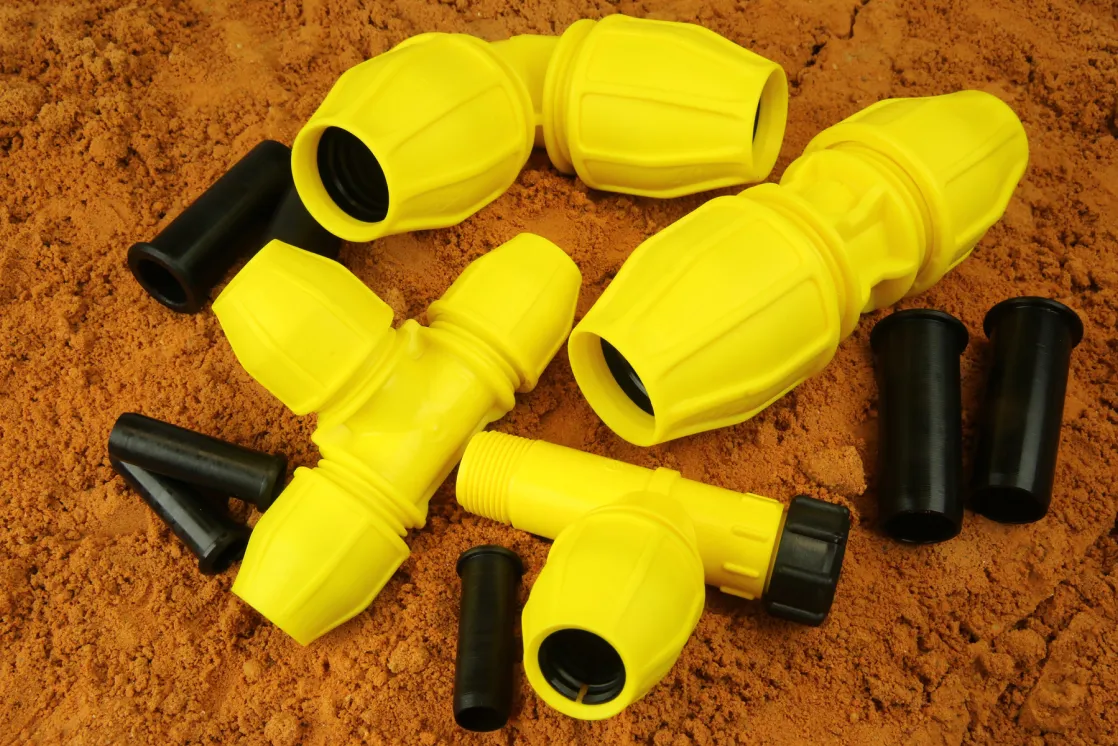

Philmac’s dedicated range of gas compression fittings significantly reduces installation times, provides a high degree of security and offers a cost effective alternative to traditional jointing methods.
Designed to make the job at hand so much easier, the Philmac gas compression fitting range is the product of Philmac’s unrelenting commitment to continuous improvement.

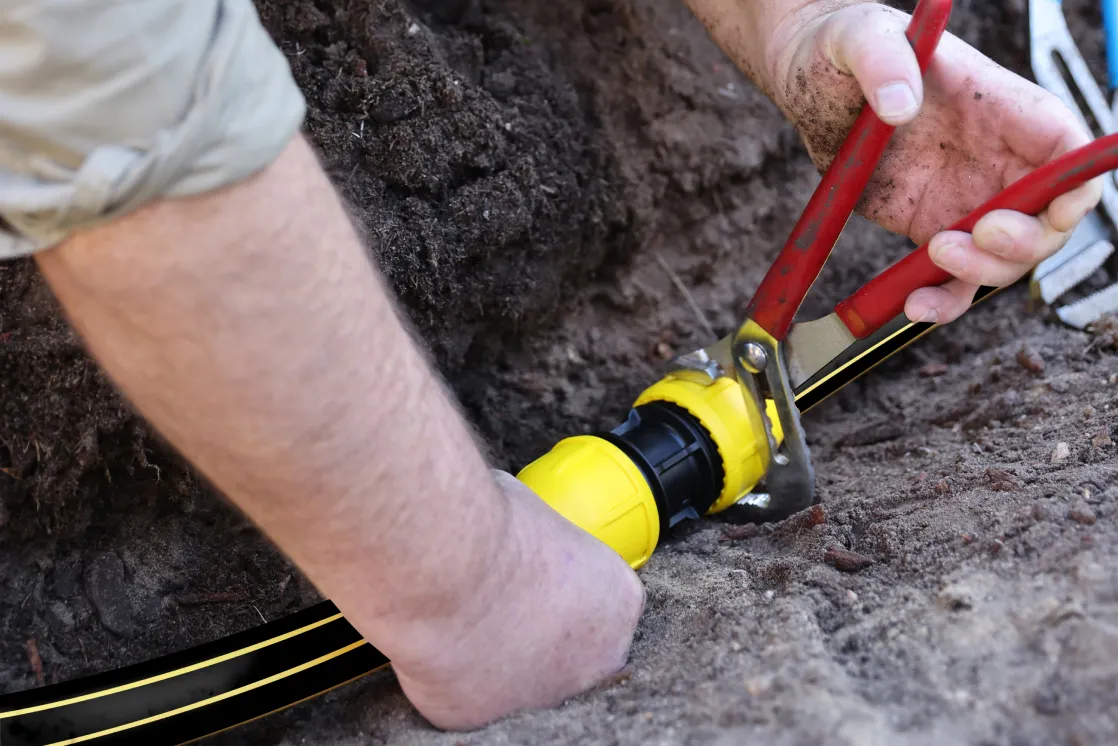

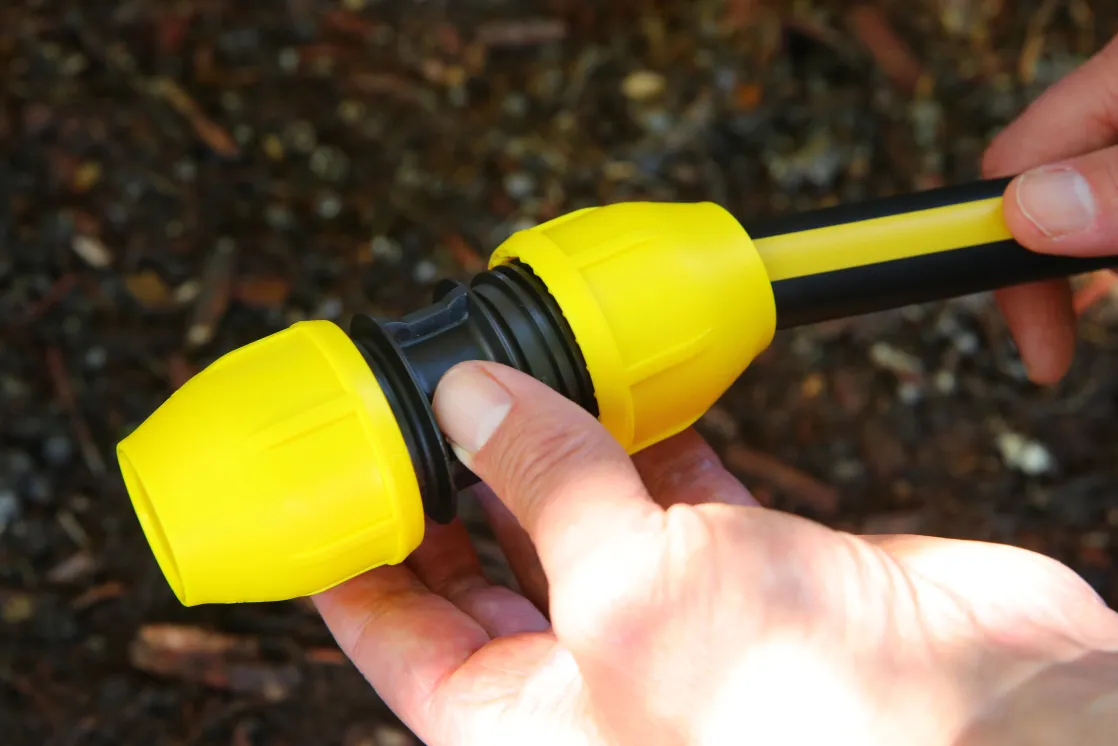

Incorporating all the benefits of Slide and Tighten technology – simply insert the liner into the pipe then insert the pipe until the first point of resistance is felt. Then tighten the nut until it butts against the flange of the fitting body.
There is no need for cumbersome equipment and no need to let the joint cure once repaired. Simply make the repair and as soon as the joint is completed the gas supply can be switched back on.
The flange on the body of the Philmac PE gas fitting provides a visual stop to indicate when the nut is fully tightened. This removes any uncertainty from the installation process.
PE GAS JOINER
| 96 2111 00 | 16 |
| 96 2122 00 | 20 |
| Product Number | Size |
|---|---|
| 96 2133 00 | 25 |
| 96 2144 00 | 32 |
| 96 2155 00 | 40 |
PE GAS REDUCING JOINER
| Product Number | Size |
|---|---|
| 96 2131 00 | 25 x 16 |
PE GAS TEES
| 96 2311 00 | 16 |
| 96 2322 00 | 20 |
| 96 2333 00 | 25 |
| Product Number | Size |
|---|---|
| 96 2344 00 | 32 |
| 96 2355 00 | 40 |
| 96 2377 00 | 63 |
PE GAS END CAP
| 96 2029 10 | 20 |
| 96 2039 10 | 25 |
| Product Number | Size |
|---|---|
| 96 2049 10 | 32 |
| 96 2059 10 | 40 |
| 96 2079 10 | 63 |
PE GAS ELBOW
| Product Number | Size |
|---|---|
| 96 2511 00 | 16 |
| 96 2533 00 | 25 |
| 96 2544 00 | 32 |
| 96 2555 00 | 40 |
| 96 2577 00 | 63 |
PE GAS END MALE END CONNECTOR
| 96 2232 00 | 25 x 3/4″ |
| Product Number | Size |
|---|---|
| 96 2243 00 | 32 x 1″ |
| 96 2254 00 | 40 x 1 1/4″ |
| 96 2176 10 | 63 x 1 1/2″ |
Philmac UTC GAS JOINER – PE x UTC
| 96 1042 00 | 21-27 x 20mm PE |
| Product Number | Size |
|---|---|
| 96 1052 00 | 27-34 x 20mm PE |
| 96 1043 00 | 21-27 x 25mm PE |
| 96 1044 00 | 21-27 x 32mm PE |
UTC GAS JOINER – UTC x UTC
| Product Number | Size |
|---|---|
| 96 1143 10 | 21-27 x 15-21 |
| 96 1144 10 | 21-27 x 21-27 |
UTC GAS ELBOW – UTC x UTC
| Product Number | Size |
|---|---|
| 96 2511 00 | 16 |
| 96 2533 00 | 25 |
| 96 2544 00 | 32 |
| 96 2555 00 | 40 |
| 96 2577 00 | 63 |
UTC GAS END CAP – UTC x UTC
| Product Number | Size |
|---|---|
| 96 1049 10 | END CAP 21-27 |
GAS SERVICE TEES WASK
| Product Number | Size |
|---|---|
| 96 1819 11 | 20 |
| 96 1821 11 | 25 |
| 96 1808 11 | 32 |
| 96 1823 11 | 40 |
GAS SERVICE TEES CUT
| Product Number | Size |
|---|---|
| 96 1822 11 | 25 |
| 96 1809 11 | 32 |
| 96 1824 11 | 40 |
Overview / Why Choose This Product
Philmac Gas Compression fittings are purpose-built for safe, compliant connections in gas distribution systems. Designed for PE gas pipe (yellow), these fittings provide a fast, secure, and leak-free seal without the need for special tools. Manufactured to meet Australian standards, they deliver confidence in residential, commercial, and light industrial gas installations. Australian Made quality ensures durability and compliance where safety matters most.
Key Features
Compliant design – meets AS/NZS standards for gas applications
Simple assembly – no special tools required
Leak-free performance – engineered seal for gas-tight connections
Robust construction – UV-stabilised and corrosion-resistant for outdoor use
Applications & Benefits
- Residential gas supply connections
- Commercial and light industrial gas distribution
- Repairs and maintenance of PE gas pipe networks
Benefits
- Safety first – compliant with Australian gas standards
- Quick installation – hand-tight assembly saves time
- Reliability – strong grip and seal reduce risk of leaks
Technical Specifications
- Size Range: Typically 20 mm – 63 mm (verify SKU)
- Pipe Compatibility: PE gas pipe (yellow)
- Pressure Rating: As per AS/NZS 4130 compliance (typically up to 700 kPa)
- Material: High-grade UV-stabilised polypropylene with engineered sealing components
- Compliance: Designed to meet AS/NZS standards for gas applications
Note: Always confirm size, pressure class, and compliance requirements against the official datasheet and local regulations.
Installation Guide
- Cut pipe square and ensure the end is clean.
- Insert pipe fully into the fitting body.
- Hand-tighten the nut until secure. No special tools required.
- Pressure test the system as per gas installation standards before commissioning.
For detailed diagrams and compliance notes, view the Philmac installation guide online.
FAQs
Is this fitting suitable for PE gas pipe?
Yes. Philmac Gas Compression fittings are designed specifically for PE gas pipe (yellow) systems.
Does it meet Australian gas standards?
Yes. The fittings are manufactured to comply with AS/NZS requirements for gas applications.
Do I need special tools for installation?
No. Assembly is tool-free (hand-tight). Always follow local gas installation standards for testing and commissioning.
