Philmac Rural Tapping Saddles

Philmac Rural tapping saddles are manufactured from high grade polypropylene to provide a high degree of resistance to corrosion, chemicals and sunlight. Available with either galv or SS316 nuts and bolts. The ideal solution for providing threaded offtakes onto Rural poly pipe.

Send an Enquiry

Range Downloads Installation

Type

Elbow Female BSP Joiner Male BSP Reducing Spare Part Tee Valve End Cap Bush Barb Clamp Spray Dripper Stake Filter Coupling Socket Nipple Ball Valve Float Valve End Plug Float Nut Pod Kit Riser Adapter

Australian Made

Any Yes No

Warranty

Any None 20-year

Certification

Any WaterMark ASN 4020

Filter Clear

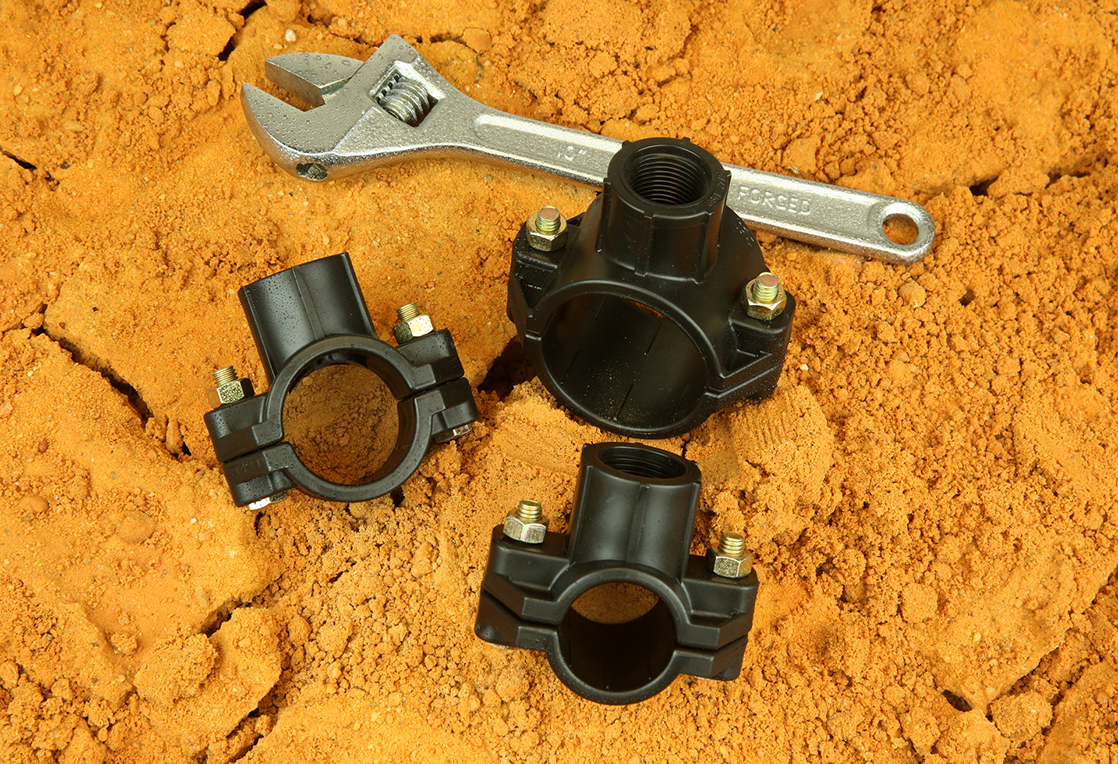

RURAL TAPPING SADDLE POLY x FI BSP-Stainless Steel

Product Number	Size
90 8532 00	1” x 3/4”
90 8542 00	11/4” x 3/4”
90 8543 00	11/4” x 1”
90 8552 00	11/2” x 3/4”
90 8553 00	11/2” x 1”
90 8562 00	2” x 3/4”
90 8563 00	2” x 1”

RURAL TAPPING SADDLE POLY x FI BSP-Zinc plated

Product Number	Size
90 8032 00	1” x 3/4”
90 8042 00	11/4” x 3/4”
90 8043 00	11/4” x 1”
90 8052 00	11/2” x 3/4”
90 8053 00	11/2” x 1”
90 8062 00	2” x 3/4”
90 8063 00	2” x 1”
40 8046 00	Stainless Steel 304 Nut & Bolt Kit (2)

TAPPING SADDLE (Mark 2) – Nut & Bolt Kit (RURAL)

Product Number	Size
40 8062 00	Z/P
40 8046 00	Stainless Steel

TAPPING SADDLE (Mark 2) – Rubber Seal (RURAL)

Product Number	Size
40 8032 04	1″ x 3/4″
40 8042 04	11/4″ x 3/4″
40 8043 04	11/4″ x 1″
40 8052 04	11/2 x 3/4″
40 8063 04	11/2 x 3/4″

Philmac Rural Tapping Saddles

Installation

Philmac Rural Tapping Saddles

Technical

Philmac Rural Tapping Saddles

Range

How to Install a Philmac Rural Tapping Saddle

Overview / Why Choose This Product

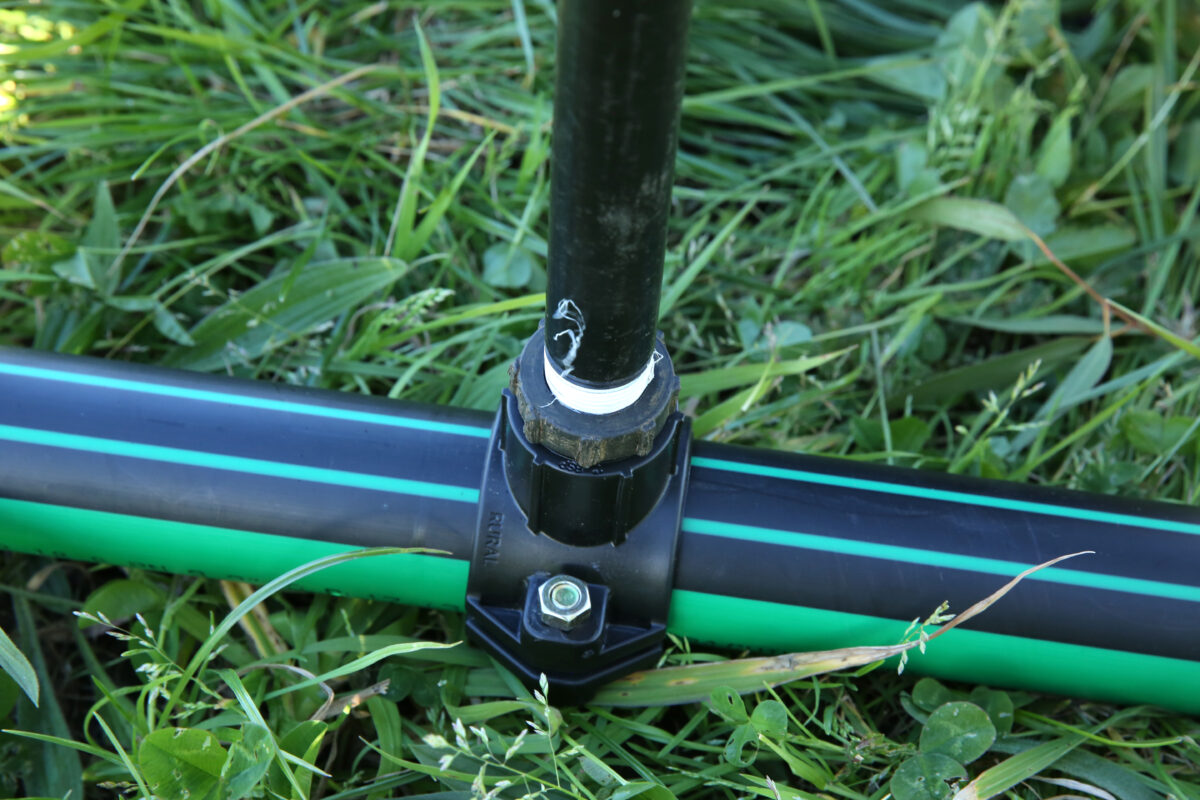

Philmac Rural Tapping Saddles make it easy to create a branch outlet on rural poly pipe without cutting or disrupting the main line. Designed for fast, secure installation, these saddles deliver a leak-free seal and robust performance in stock watering, irrigation, and property water systems. Built tough for Australian conditions, they resist UV and corrosion for long-term reliability. Australian Made quality ensures confidence in every connection.

Key Features

Quick branch connection – tap into rural poly pipe without cutting the main line

Leak-free performance – engineered seal for consistent water flow

Durable design – UV-stabilised and corrosion-resistant for outdoor use

Easy installation – simple assembly with minimal tools

Applications & Benefits

Applications

• Stock watering systems
• Irrigation networks
• Property water reticulation
• Repairs and extensions requiring branch outlets

Benefits

• Time-saving – install without removing or cutting the main pipe
• Reliable seal – reduces leaks and maintenance
• Built tough – withstands harsh conditions and UV exposure

Technical Specifications

• Size Range: Saddles for ¾”, 1″, 1¼”, 1½”, 2″ rural poly pipe
• Outlet Options: BSP threaded outlets (typically ½”, ¾”, 1″)
• Pressure Rating: Up to PN12.5 (typical)
• Material: High-grade UV-stabilised polypropylene

Note: Always confirm size, pressure class, and compliance requirements against the official datasheet and local standards.

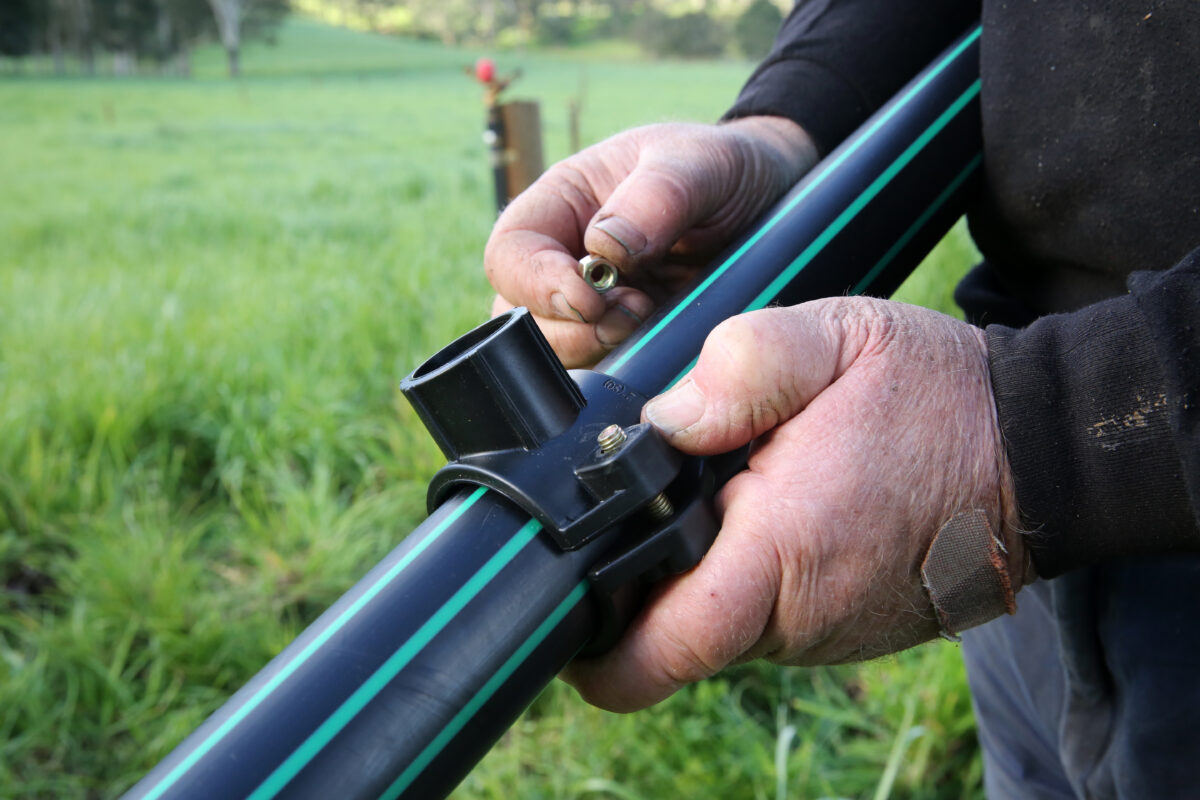

Installation Guide

1. Position the saddle on the pipe at the desired location.
2. Secure the saddle halves around the pipe using the supplied bolts.
3. Drill through the pipe wall using the correct size hole saw or drill bit.
4. Install the outlet fitting and test for leaks before commissioning.

For detailed diagrams and torque guidance, view the Philmac installation guide online.
