Philmac Servo Tank Filling Valve
The Servo Tank Filling Valve delivers on flow and shut-off pressure. With flow in excess of 45 L/sec and a shut-off pressure of 2,000 kPa this valve is ideally suited to commercial and industrial applications such as fire water tanks. What’s more it has approval* for mains water connection.
*AS 1910 and AS/NZS 4020
SERVO TANK FILLING VALVES (Includes Lever)
| Product Number | Size |
|---|---|
| 90 3815 00 | 1-1/2” |
| 90 3816 00 | 2” |
| 90 3817 00 | 3” |

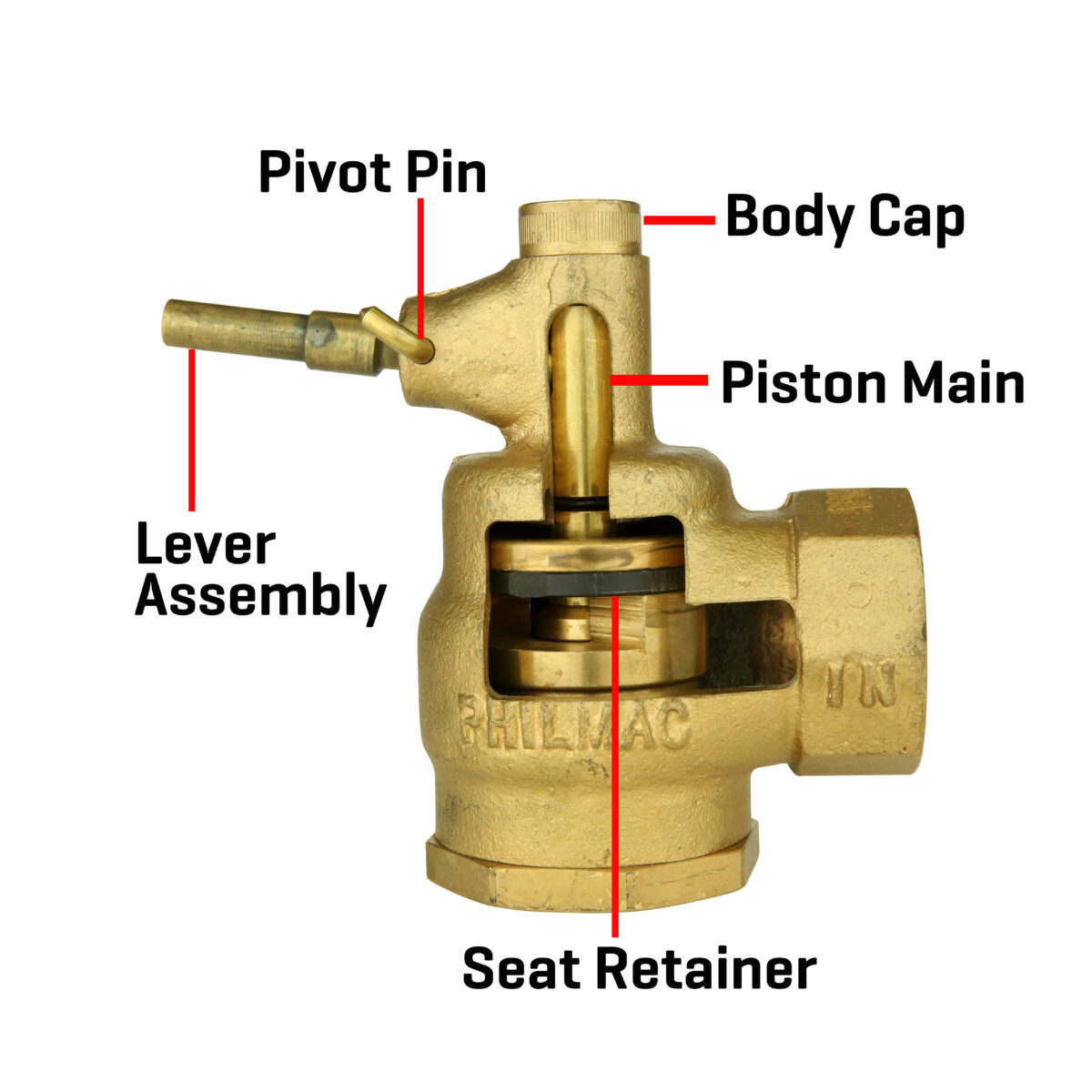

SERVO TANK FILLING VALVE 3″ (80mm) (MK II) Spare Part
| Product Number | Size |
|---|---|
| 40 3814 18 | PIVOT PIN |
| 40 3807 05 | PISTON – Small Servo |
| 40 3805 09 | SEAT RETAINER – 1-1/2″ |
| (40 mm) 2″ (50 mm) & 3″ (80 mm) | |
| 40 3807 03 | PISTON – MAIN |
| 40 3805 10 | SCREW RETAINER |
| 40 3807 04 | BOTTOM SEAT |
| 40 3181 05 | BODY CAP |
| 40 3817 16 | LEVER ASSEMBLY – 1000 mm (includes cotter pin) |
| 90 3877 00 | SERVICE KIT – Consists of top seat washer, seat rubber, split ring and ‘O’ rings |
SERVO TANK FILLING VALVE 2″ (50 mm) (MK II) Spare Part
| Product Number | Size | |
|---|---|---|
| 40 3814 18 | PIVOT PIN | |
| 40 3805 05 | PISTON – Small Servo | |
| 40 3805 09 | SEAT RETAINER – 1-1/2″ (40 mm) 2″ (50 mm) & | |
| 3″ (80 mm) | ||
| 40 3806 03 | PISTON – MAIN | |
| 40 3806 07 | SEAT RETAINER – 2″ (50 mm) Only | |
| >> 50mm SEAT only (No longer available individually – Part of 40 3806 07) | ||
| 40 3805 10 | SCREW RETAINER | |
| 40 3806 04 | BOTTOM SEAT | |
| 40 3181 05 | BODY CAP | |
| 40 3816 16 | LEVER ASSEMBLY – 860 mm (includes cotter pin) | |
| 90 3876 00 | SERVICE KIT – Consists of top seat washer, seat rubber, split ring and ‘O’ rings | |
SERVO TANK FILLING VALVE 1-1/2″ (40 mm) (MK II) Spare Part
| Product Number | Size | |
|---|---|---|
| 40 3814 18 | PIVOT PIN | |
| 40 3805 05 | PISTON – Small Servo | |
| 40 3805 09 | SEAT RETAINER – 1-1/2″ (40 mm) 2″ (50 mm) & | |
| 3″ (80 mm) | ||
| 40 3805 03 | PISTON – MAIN | |
| 40 3805 07 | SEAT RETAINER – 1-1/2″ | |
| (40 mm) Only | ||
| >> 40mm SEAT only (No longer available individually – Part of 40380507) | ||
| 40 3805 10 | SCREW RETAINER | |
| 40 3805 04 | BOTTOM SEAT | |
| 40 3181 05 | BODY CAP | |
| 40 3815 16 | LEVER ASSEMBLY – 750 mm (includes cotter pin) | |
| 90 3875 00 | SERVICE KIT – Consists of top seat washer, seat rubber, split ring and ‘O’ rings | |
Overview / Why Choose This Product
Philmac Servo Tank Filling Valve is engineered for high-demand water delivery and shut-off in large-scale applications. Its unique servo action ensures reliable closure at extreme pressures while allowing high flow rates. Compact design reduces float size and lever length, making installation easier in confined spaces. Built from corrosion-resistant materials and approved for potable water, this valve is trusted for critical systems where performance matters.
Key Features
High-pressure shut-off – rated to 2000 kPa for mains and industrial supply
Servo action design – ensures reliable closure with smaller float and lever
High flow capacity – ideal for rapid filling of large tanks
Compact body – fits confined spaces like fire service tanks
Corrosion-resistant construction – DZR brass body, stainless steel seat, nitrile seals
Applications & Benefits

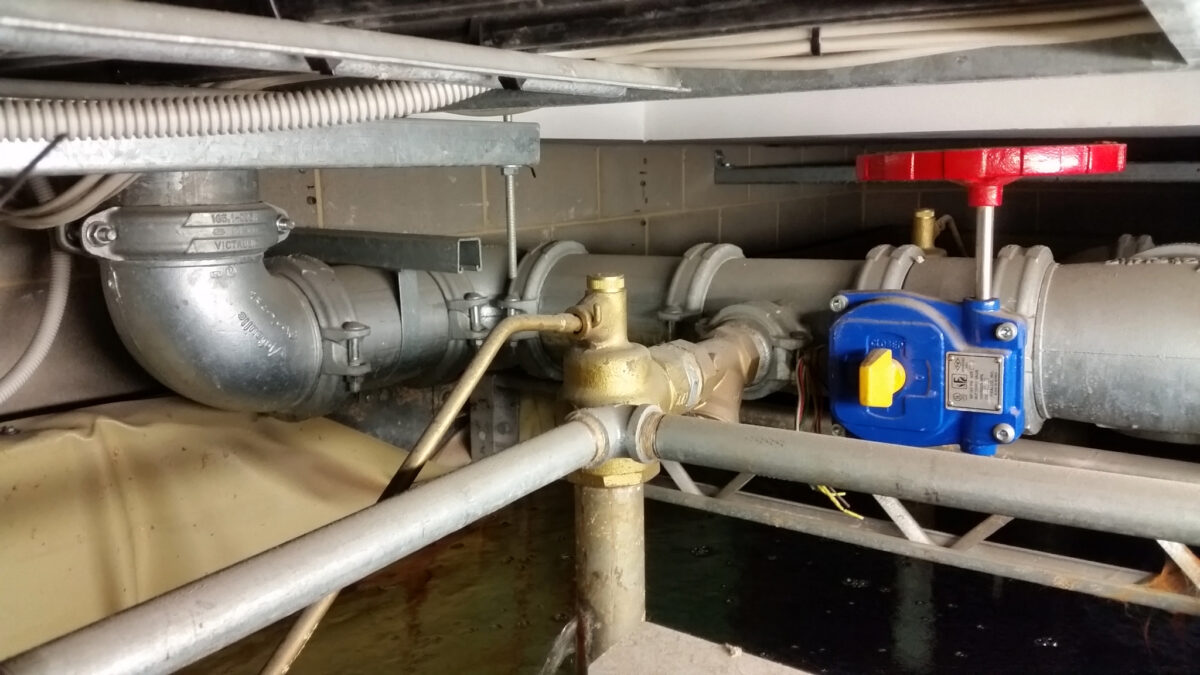

Applications
- Fire service water tanks
- Industrial water systems
- Bore scheme tanks
- Large agricultural reservoirs
Benefits
- Consistent water levels – reduces manual monitoring
- Reliable shut-off – even under extreme pressure
- Long service life – corrosion-resistant materials for harsh environments
Technical Specifications
- Size Range: 1½”, 2″, and 3″ BSP inlet
- Connection Type: BSP threaded ends
- Pressure Rating: Up to 2000 kPa (static shut-off)
- Material: DZR brass body, 316 stainless steel seat, nitrile O-rings and seals
Note: Always confirm size, pressure class, and compliance requirements against the official datasheet and local standards.
Installation Guide
- Attach valve to tank inlet using BSP threaded connection.
- Apply PTFE tape or approved sealant to the inlet thread for a watertight seal.
- Screw valve into female thread by hand until firm, then tighten using a spanner or pipe wrench on the hex body.
- Fit lever arm and float – thread the lever through the copper float and secure with cotter pin.
- Pressurise and test the system for correct operation and shut-off.
- Fine-tune float position for optimal water level control.
For detailed diagrams and adjustment tips, view the Philmac installation guide online.
FAQs
What is this valve used for?
It’s designed for high-pressure, high-flow water level control in fire service tanks, industrial systems, and large reservoirs.
What sizes are available?
1½”, 2″, and 3″ BSP inlet sizes.
Do I need special tools for installation?
No. Standard plumbing tools are sufficient.
What makes this valve different?
Its servo action design provides reliable shut-off at extreme pressures with a compact footprint and high flow capacity.
